How Motorized Retractable Screens Work

A handful of parts doing one job. Understanding what each layer does is the fastest way to judge whether a proposal is a specification or a sales pitch — and to know which questions are worth asking.

Request a Design Consultation MagnaTrack® systems

Start here

What a motorized screen is made of

Six components. The interesting engineering is not where most people expect it.

Housing — the enclosure at the top holding the roller when the screen is up. Surface-mounted onto the structure or recessed into it.
Roller — the tube the material winds onto.
Motor — inside the tube, driving it in both directions.
Material — the mesh or vinyl itself, chosen per opening.
Side retention — the tracks down each side holding the material's edges.
Bottom bar — weighted, holding tension and meeting the floor.

Plus the controls, and the structure it all fixes to — which is not a component but decides more than any of them.

The engineering

Everything interesting happens at the edges

If you only understand one thing about how these work, make it this.

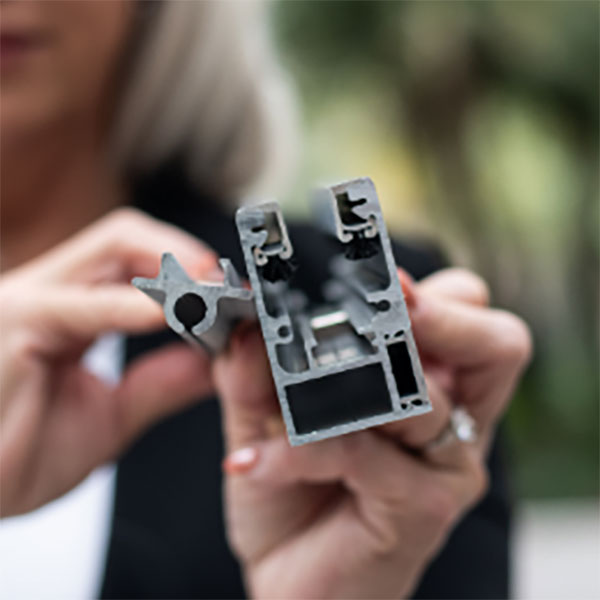

01 — The sides

Side retention is the whole system

A screen that is not held at its edges is a curtain. Under any wind at all the material bows away from the opening, and the moment an edge lifts, an insect mesh stops excluding insects and a solar mesh stops covering the opening it was specified for.

How a system retains those edges is therefore the difference between one that works in real conditions and one that works on a calm day. MagnaTrack® uses a magnetically retained side track — the practical consequence being that material can release and re-seat rather than tearing out of a fixed channel.

An unretained edge makes the whole screen ineffective.
Retention method is the main engineering differentiator.
A magnetic track allows release and re-seating.

02 — The housing

The housing decides how it looks

Surface-mounted housings fix to the face of the structure. Recessed housings sit inside it and largely disappear, which needs depth in the header and needs to be known before finishes go on. On new construction that is a live decision; on a retrofit it may or may not be available.

Recessed conceals but needs header depth.
Surface-mounted is the usual retrofit answer.
On appearance-sensitive properties this matters most.

03 — The motor

The motor is what makes the habit possible

Motorisation is not primarily about convenience. In this region it is what makes retracting the screens ahead of weather easy enough that people actually do it — and that habit does more for the life of a system than any specification detail. Motors sit inside the roller tube and are selected as part of the specification.

The real value of motorisation here is easy retraction.
Motor selection determines control and integration options.
Most control problems turn out to be power problems.

Controls and automation

04 — The bottom

The bottom bar meets an imperfect floor

Slabs slope for drainage, thresholds have lips, and a patio edge is rarely a straight line. How the weighted bottom bar meets that floor decides whether the opening is genuinely closed or closed with a gap along the bottom — which matters a great deal on an insect specification and hardly at all on a solar one.

Slab slope and threshold detail affect the seal at the floor.
Matters most for insect specifications.
Assessed on site, not from a photograph.

In use

Operating and retracting

In normal use the screen deploys when you want the opening closed and retracts into the housing when you do not. That is the entire proposition, and it is what separates a retractable system from a fixed screen room: the space is fully open when you want it open.

Retraction is also the correct response to severe weather. A retractable screen should be retracted ahead of a forecast event rather than left deployed through it — that is a homeowner decision, and in West Texas it is the single most important operating habit. The wind, hail and blowing dust page explains why in detail.

What a system tolerates in wind depends on the structure it is fixed to as much as on the components, which is one reason we assess mounting on site rather than quoting a figure.

We do not publish manufacturer specifications on this site. Wind ratings, spans, fabric openness figures, finishes, approval numbers and warranty terms are the manufacturer's, they differ by component, and they change. We confirm the current published figures for your specific openings, in writing, before anything is quoted.

Where to go next

How it works FAQ

What happens to the screen when it is not in use?

It retracts into its housing. That is the central argument for a retractable system over a fixed screen room — the space is genuinely open when you want it open, with no permanent visual change to the structure.

How wide an opening can one screen cover?

Maximum spans are published by the manufacturer, differ by configuration and change over time, so we do not print them here. We confirm the current published figures against your measured openings before anything is quoted.

What is the difference between recessed and surface-mounted?

A recessed housing sits inside the structure and largely disappears; a surface-mounted one fixes to the face of it. Recessed needs depth in the header and needs deciding before finishes go on, which makes it much easier on new construction.

What holds the screen in place in wind?

The side retention along each edge. It is the main engineering differentiator between systems and the thing most worth asking about — an unretained edge makes the whole screen ineffective.

Do the screens work in a power cut?

A motorized screen needs power to move. Behaviour during an outage depends on the motor and configuration selected, so raise it at specification if it matters to you rather than assuming a general answer.

Can I operate several screens together?

Yes, with grouping — and on a patio with several openings it is the single most valuable control decision. It is far easier to plan at specification than to retrofit.
